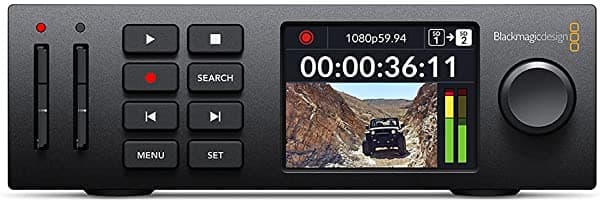

Blackmagic Design Hyperdeck Studio Hd Mini HYPERD/ST/DAHM

Blackmagic Design HYPERD/ST/DAHM // Blackmagic HyperDeck Studio HD Mini The most compact model of HyperDeck Studio is based on the Teranex Mini form factor.
This modular design means that you can use a Teranex Mini Rack Shelf to rack mount 3.HyperDeck Studio HD Minis in a.single rack unit, or you can combine them with other products such as switchers, converters or streaming processors.
It.might be small, but you still get powerful features, such as 3G-SDI in and out, HDMI output, dual SD card media slots, built in sync and timecode generators, front panel controls and both AC and DC power inputs.
You.can even connect the USB to a computer as HyperDeck Studio HD Mini works like a.webcam so you can use any video.software! 1 SDI Video Inputs 1 SDI Video Outputs SDI Rates: 270Mb, 1.5G, 3G.
1 HDMI Video Outputs 2.2 inch LCD Screen Timecode Connections: 1 x BNC In, 1 x BNC Out.
Reference Connections: 1 x BNC In, 1 x BNC Out.
Tri-Sync or Black Burst.
16 channels embedded audio Inputs 16 channels embedded audio Outputs 8 HDMI channels embedded audio 1 x RS-422 in for Remote Control Recorder Configuration: Via user interface or Blackmagic HyperDeck Ethernet Protocol.
1Gb/s Ethernet Computer Interface: 1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam out, software configuration and updates.

2x SD Card Slots

HDMI / SDI IN

1GBit Ethernet

RS-422 Input //

PESO del producto SIN embalaje: 0,95 KG
PESO del producto CON Embalaje: 1,04 KG
Dimensiones del Producto: Largo: 23,1 (cm) Ancho: 23,1 (cm) Alto 23,1 (cm)
